KTM 890 Duke R - Owner's Manual > Coolant temperature indicator

Note

Engine failure Overheating damages the engine.

• If the coolant temperature warning is displayed, stop immediately and take care not to endanger yourself or other traffic participants in the process.
• Allow the engine and cooling system to cool down.
• Check and, if necessary, correct the coolant level on the cooling system while it is in a cooled state.

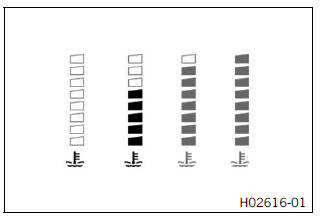

The temperature indicator consists of eight bars. The more bars that light up, the hotter the coolant.

Emergency mode operation is automatically activated at a coolant temperature of 120 ºC.

Info

When all the bars light up, the ENGINE TEMP HIGH warning also appears.

Possible states

• The engine is cold - Up to three bars light up.
• Engine warm - Four to five bars light up.
• Engine hot - Six to eight bars light up.
• Engine very hot - All eight bars flash orange.

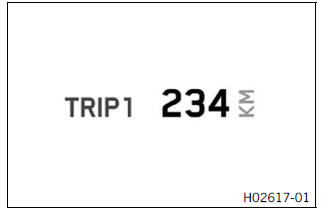

Trip master

Trip 1 is displayed in the start screen as a trip master. This cannot be changed.

Information about the total riding distance covered can be accessed in the General Info menu under menu item Odometer.

The trip master can be configured in the Trip 1 menu.

Information about other distances traveled can be accessed and configured in the Trip 2 menu.

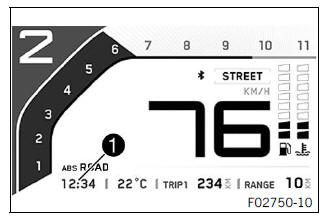

Time

The time 1 is displayed in 24 hour format in all languages except for EN-US. The time 1 is displayed in 12 hour format if the language is set to EN-US.

The time can be configured in the Clock/Date menu.

Info

The time must be reset if the 12-V battery was disconnected from the vehicle or the fuse was removed.

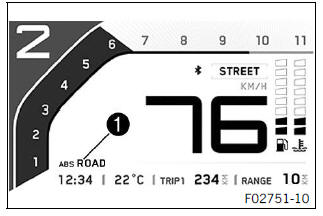

ABS display

The ABS mode setting is shown in the 1 area of the display.

The ABS can be configured in the ABS Mode menu.

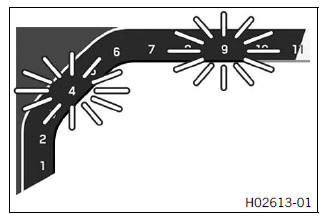

Shift warning light

The shift warning light is integrated in the tachometer display.

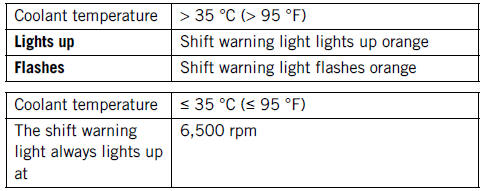

In the Shift Light menu, the engine speed for the shift warning light can be set. The shift warning light is always active during the running-in phase (up to 1,000 km / 600 mi). The shift warning light can only be deactivated, and the values for Lights up and Flashes can only be adjusted after this. The shift warning light lights up orange at Lights up and flashes orange at Flashes.
