KTM 890 Duke R - Owner's Manual > Display

Info

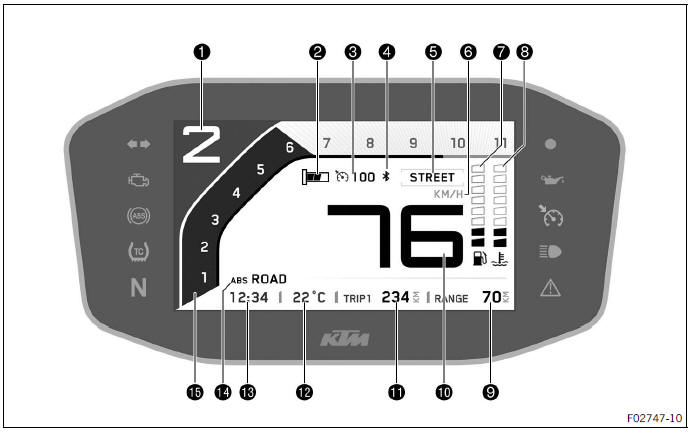

The figure shows the start screen of the combination instrument. If the menu is opened, the speed is still displayed.

1. Gear display
2. Heated grip (optional)
3. Cruise control indicator (optional)
4. Bluetooth (optional)
5. Ride Mode
6. Unit for the speedometer
7. Fuel level display
8. Coolant temperature indicator
9. Range display
10. Speed
11. Trip master
12. Ambient temperature
13. Time
14. ABS display
15. Tachometer
    Shift warning light
    The shift warning light is integrated in the tachometer display.

TRACK Display (optional)

Info

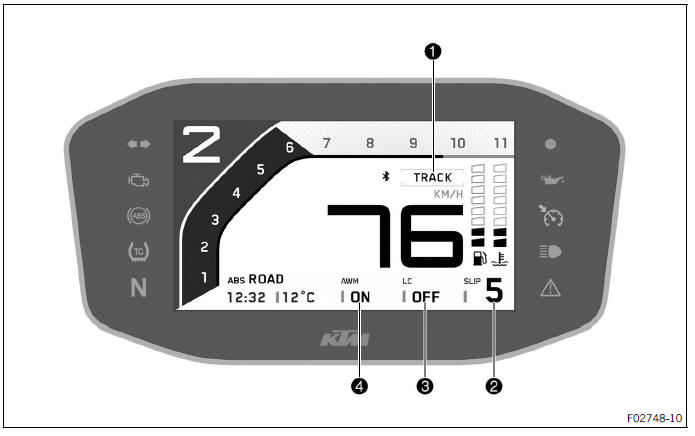

The figure shows the start screen of the combination instrument in active riding mode TRACK (optional). If the menu is opened, the speed is still displayed.

1. Throttle response (optional)
2. Slip adjustment (optional)
3. Launch‑Control (optional)
4. Anti Wheelie Mode (optional)

Heated grip (optional)

When the heated grip (optional) is switched on, the Heated Grips symbol appears in the 1 area of the display.

The heated grip can be configured in the Heated Grips menu.

Cruise control indicator (optional)

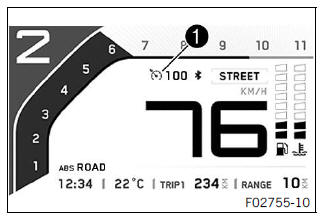

When cruise control (optional) is activated, the operating mode 1 is shown on the combination instrument display.

Cruise control is operated using the cruise control tip switch .

Fuel level display

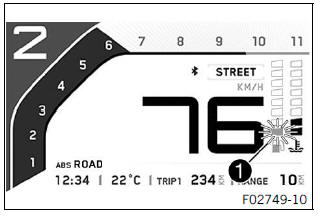

The fuel level indicator 1 consists of bars. The more bars are lit, the more fuel is in the fuel tank.

Info

If the fuel level is getting low, the last bar flashes orange and the LOW FUEL warning also appears.

The fuel level is displayed with a slight delay to prevent the indicator from constantly moving while riding.

The fuel level display is not updated while the side stand is folded out or the emergency off switch is switched off.

Once the side stand is folded up and the emergency OFF switch is switched on, the fuel level display is next updated after 2 minutes.

The fuel level display flashes if the combination instrument does not receive a signal from the fuel level sensor.
