KTM 890 Duke R - Owner's Manual > Day-Night mode

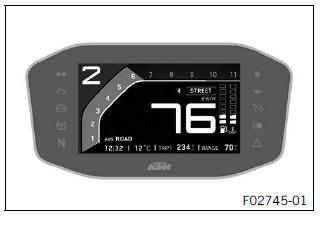

Day mode is shown in a bright color.

Night mode is shown in a dark color.

Info

The ambient light sensor in the combination instrument measures the brightness of the environment and automatically switches the display to day or night mode. The display is brightened, darkened or switched to the other mode depending on the brightness measured by the ambient light sensor.

The display mode cannot be changed manually.

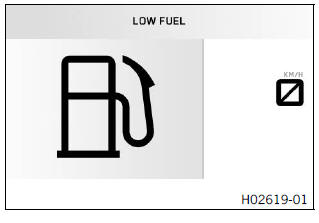

Warnings

If the general warning lamp lights up among the indicator lamps, the corresponding message appears in the display.

Pressing any button confirms receipt of the information and the message is cleared.

All the existing warnings are displayed in the Warnings menu until they are no longer active.

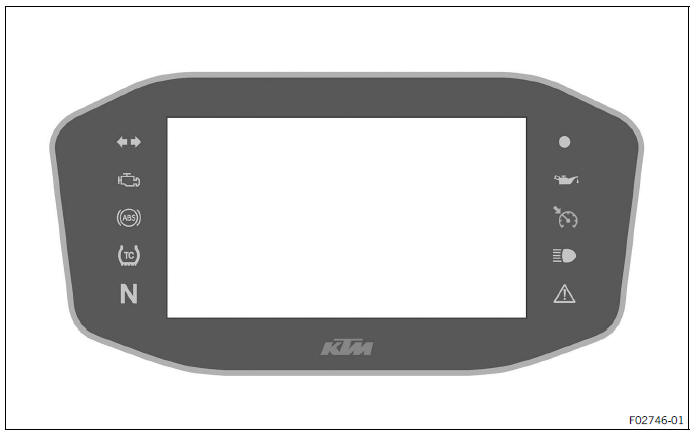

Indicator lamps

The indicator lamps offer additional information about the operating state of the motorcycle.

When the ignition is switched on, all indicator lamps light up briefly.

Info

The malfunction indicator lamp always lights up as long as the engine is not running. If the engine is running and the malfunction indicator lamp lights up, stop (taking care not to endanger yourself or other road users in the process) and contact an authorized KTM workshop.

The oil pressure warning lamp always lights up as long as the engine is not running. If the engine is running and the oil pressure warning lamp lights up, stop immediately (taking care not to endanger yourself or other road users in the process) and switch off the engine.

The ABS warning lamp and TC indicator lamp light up until a speed of approx. 6 km/h (approx. 4 mph) or more has been reached.

Possible states

The turn signal indicator lamp flashes green simultaneously with the turn signal - The turn signal is switched on.

Malfunction indicator lamp lights up yellow - The OBD has detected a malfunction in the vehicle electronics. Come safely to a halt, and contact an authorized KTM workshop.

ABS warning lamp lights up yellow - Status or error messages relating to ABS.

  TC indicator lamp lights up yellow - MTC is not enabled or is currently intervening.

The TC indicator lamp also lights up if a malfunction is detected. Contact an authorized KTM workshop. The TC indicator lamp flashes if MTC actively engages or if the Launch Control is activated.

The idle indicator lamp lights up green - The transmission is in neutral.

The immobilizer indicator lamp lights up or flashes red - Status or error message of the alarm system.

The oil pressure warning lamp lights up red - The oil pressure is too low. Stop immediately, taking care not to endanger yourself or other road users in the process, and switch off the engine.

The cruise control system indicator lamp (optional) lights up yellow - The cruise control system function is switched on, but cruise control is not activated.

The cruise control system indicator lamp (optional) lights up green - The cruise control system function is switched on and cruise control is activated.

The high beam indicator lamp lights up blue - The high beam is switched on.

The general warning lamp lights up yellow - A note/warning on operating safety has been detected. This is also shown in the display.
