Combination instrument

The combination instrument is attached in front of the handlebar.

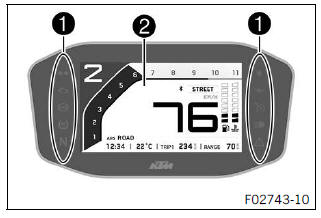

The combination instrument is divided into two function areas. 1 indicator lamps
Display 2.

Activation and test

Activation

The combination instrument is activated when the ignition is switched on.

Info

The brightness of the displays is controlled by an ambient light sensor in the combination instrument.

Test

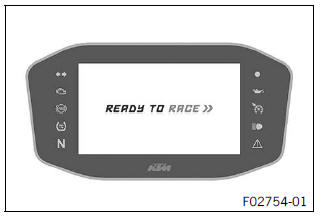

The welcome text appears on the display and the indicator lamps are briefly activated for a function check.

Info

The malfunction indicator lamp always lights up as long as the engine is not running. If the engine is running and the malfunction indicator lamp lights up, stop (taking care not to endanger yourself or other road users in the process) and contact an authorized KTM workshop.

The oil pressure warning lamp always lights up as long as the engine is not running. If the engine is running and the oil pressure warning lamp lights up, stop immediately (taking care not to endanger yourself or other road users in the process) and switch off the engine.

The ABS warning lamp and TC indicator lamp light up until a speed of approx. 6 km/h (approx. 4 mph) or more has been reached.

• Day-Night mode
• Display
• Coolant temperature indicator
• Menu
1. Favorites
2. Settings
3. Pressure
4. TPMS warning
5. Service
