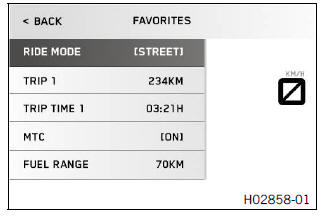

KTM 890 Duke R - Owner's Manual > Favorites

• Press the SET button when the menu is closed.
• Pressing the SET button again opens the menu.
• Press the UP or DOWN button to activate the menu item and select it with the SET button.

You can directly open five freely configurable menus in the Favorites menu.

The Favorites menu is configured in the Set Favorites menu.

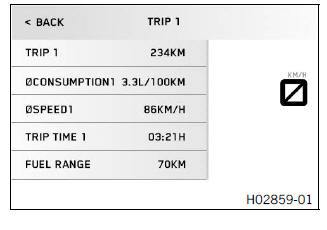

Trip 1

• Press the SET button when the menu is closed.
• Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
• Press the UP or DOWN button until the Trip 1 menu is marked on the display. Press the SET button to open the menu.

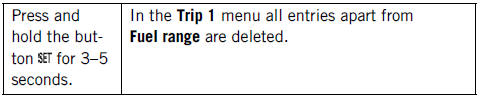

Trip 1 shows the distance since the last reset, such as between two refueling stops. Trip 1 is running and counts up to 9999.

Ø Consumption 1 indicates the average fuel consumption based on Trip 1 and Trip time 1.

Ø Speed 1 indicates the average speed based on Trip 1 and Trip time 1.

Trip time 1 shows the journey time on the basis of Trip 1 and runs as soon as a speed signal is received.

Fuel range indicates the possible distance you can cover with the fuel reserve.

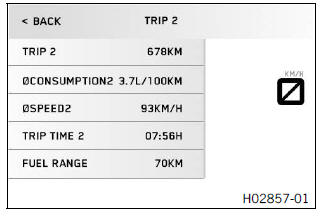

Trip 2

• Press the SET button when the menu is closed.
• Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
• Press the UP or DOWN button until the Trip 2 menu is marked on the display. Press the SET button to open the menu.

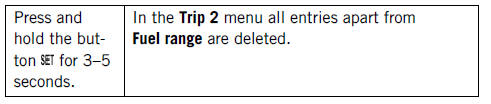

Trip 2 shows the distance since the last reset, such as between two refueling stops. Trip 2 is running and counts up to 9999.

Ø Consumption 2 indicates the average consumption based on Trip 2 and Trip time 2.

Ø Speed 2 indicates the average speed based on Trip 2 and Trip time 2.

Trip time 2 shows the journey time on the basis of Trip 2 and runs as soon as a speed signal is received.

Fuel range indicates the possible distance you can cover with the fuel reserve.

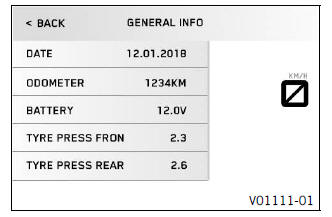

General Info

Warning

Danger of accidents The tire pressure monitoring system does not eliminate the necessity to check the tires before going on a ride.

To avoid false alarms, the tire pressure values are evaluated over a period of several minutes.

• Check the tire pressure before every ride.
• Correct the tire pressure if the tire pressure deviates from the specified value.
• Even if the tire pressure values are correct, stop the vehicle immediately if its behavior indicates a loss of pressure in the tires.



• Press the SET button when the menu is closed.
• Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
• Press the UP or DOWN button until the General Info menu is marked on the display. Press the SET button to open the menu.

Date shows the date.

Odometer shows the total distance covered.

Battery indicates the battery voltage.

Tire press front (optional) indicates the tire pressure at the front.

Tire press rear (optional) indicates the tire pressure at the rear.
