KTM 890 Duke R - Owner's Manual > Settings

Condition

• The motorcycle is stationary.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.

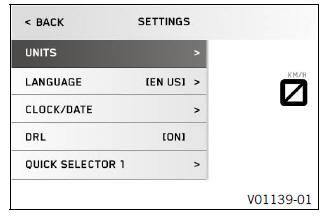

Settings for units or various values are made in the Settings menu.

Several functions can be enabled or disabled.

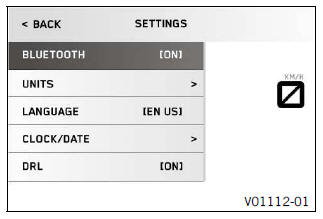

Bluetooth (optional)

Condition

• The motorcycle is stationary.
• Function KTM MY RIDE (optional) activated.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until Bluetooth is marked on the display.
  • Switch the Bluetooth on and off using the SET button.

Info

The Bluetooth function can only be used in conjunction with KTM MY RIDE (optional).

If a device has been paired via the menu Pairing but is currently not connected, the Bluetooth symbol flashes when the Bluetooth function is switched on. The Bluetooth symbol lights up as soon as a device is connected.

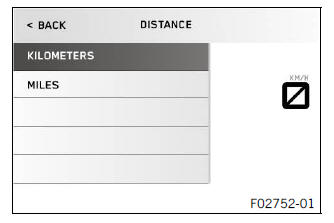

Distance

Condition

• The motorcycle is stationary.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until Units is marked on the display.

    Pressing the SET button again opens the menu.

  • Press the UP or DOWN button until Distance is marked on the display. Pressing the SET button again sets the unit of measure.

Select kilometers km or miles mi for the distance.

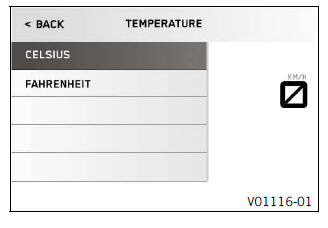

Temperature

Condition

• The motorcycle is stationary.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until Units is marked on the display.

    Pressing the SET button again opens the menu.

  • Press the UP or DOWN button until Temperature is marked on the display. Pressing the SET button again sets the unit of measure.

Select ºC or ºF for the temperature indicator.
