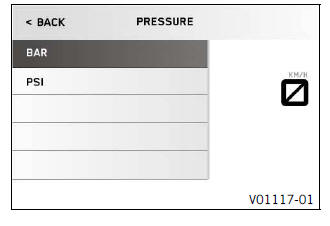

KTM 890 Duke R - Owner's Manual > Pressure

Condition

• The motorcycle is stationary.
• Model with TPMS.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until Units is marked on the display.

    Pressing the SET button again opens the menu.

  • Press the UP or DOWN button until Pressure is marked on the display. Pressing the SET button again sets the unit of measure.

Select bar or psi.

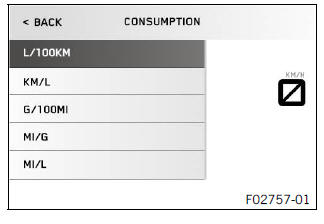

Consumption

Condition

• The motorcycle is stationary.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until Units is marked on the display.

    Pressing the SET button again opens the menu.

  • Press the UP or DOWN button until Consumption is marked on the display. Pressing the SET button again sets the unit of measure.

Select one of the available consumption displays.

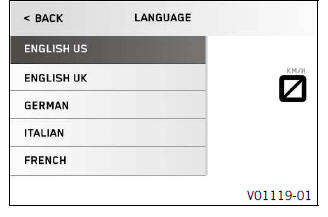

Language

Condition

• The motorcycle is stationary.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until Language is marked on the display. Press the SET button again to select the language.

The menu languages are US English, UK English, German, Italian, French, and Spanish.

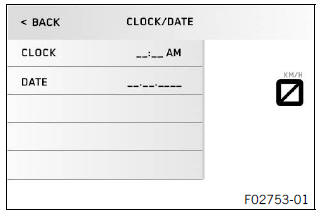

Clock/Date

Condition

• The motorcycle is stationary.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until Clock/Date is marked on the display. Pressing the SET button again opens the menu.
  • Press the UP or DOWN button to set the clock and confirm with the SET button.
  • Press the UP or DOWN button to set the date and confirm with the SET button.

If the 12-V battery has been disconnected, the time and date must be set.

Info

If the 12-V battery has been disconnected, the software version is also displayed.

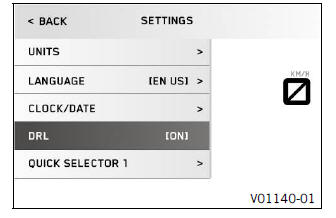

DRL

Condition

• The motorcycle is stationary.
  • Press the SET button when the menu is closed.
  • Press the UP or DOWN button until the Trips/Data menu is marked on the display. Press the SET button to open the menu.
  • Press the UP or DOWN button until the Settings menu is marked on the display. Press the SET button to open the menu.

Warning

Danger of accidents When visibility is poor, the daytime running light is not a substitute for the low beam.

Automatic switching between the daytime running light and low beam may only be partially available when visibility is significantly impaired due to fog, snow or rain.

• Ensure that the appropriate type of lighting is always selected.
• If necessary switch off the daytime running lights using the menu before going on a ride or when stopped so that the low beam is switched on permanently.
• Note the legal regulations regarding the daytime running light.



• Press the UP or DOWN button until DRL is marked on the display.

  Press the SET button to switch the daytime running light on or off.
