Husqvarna 401 Vitpilen - Owner's Manual > Setting the units

Info

Make the setting according to the country.

If you change the unit, the value ODO is retained and converted accordingly.

Condition

The motorcycle is stationary.

• Press the MODE button briefly and repeatedly until ODO appears on the display.
• Press the MODE button for 5 seconds.

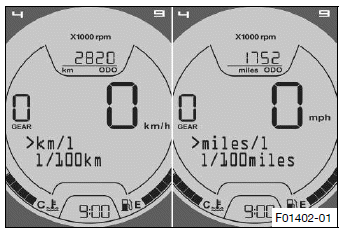

The units display appears.

Info

The units display is shown on the ODO display for each menu by keeping the MODE button pressed.

• Press the SET button briefly and repeatedly until the desired unit appears.
• Do not actuate MODE button and SET button for about 5 seconds.

The units display disappears and the selected unit of the first line is adopted and saved.

Info

km or miles can be set as a length unit.

l, USga, or UKga can be set as a volume unit.

Setting the clock

Info

The clock is displayed in 24-hour format.

The time must be reset if the battery was disconnected from the vehicle or the fuse was removed.

Condition

The motorcycle is stationary.

• Press the MODE button briefly and repeatedly until ODO appears on the display.
• Press the MODE button and SET button simultaneously for 5 seconds.

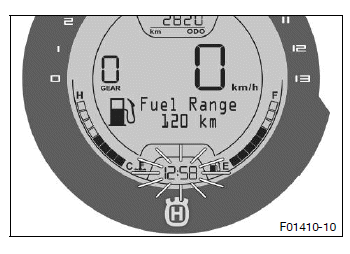

The time display begins to flash.

Info

The clock can be set in the ODO display for each menu by keeping the MODE button and SET button pressed simultaneously.

• Set the hours display using the MODE button.
• Set the minutes display using the SET button.
• Press the MODE button and SET button simultaneously.

The set time is adopted and saved.

Adjusting the shift speed RPM1

Condition

The motorcycle is stationary.

ODO > 1000 km (621 mi).

• Press the MODE button briefly and repeatedly until TRIP 1 appears on the display.
• Press the MODE button for 5 seconds.

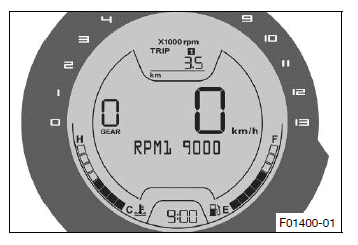

The RPM1 display appears.

Info

The RPM1 display appears in the TRIP 1 display for each menu by keeping the MODE button pressed.

RPM1 is the engine speed above which the shift warning light starts flashing.

The engine speed can be set at intervals of 50.

The shift speed RPM1 can only be set up to maximum 50 revolutions per minute below the shift speed RPM2.

• Set the speed with the MODE button and SET button.

Info

The MODE button increases the value.

The SET button decreases the value.

• Press the MODE button and SET button simultaneously.

The RPM1 display disappears and the set shift speed RPM1 is adopted and saved.

Adjusting the shift speed RPM2

Condition

The motorcycle is stationary.

ODO > 1000 km (621 mi).

• Press the MODE button briefly and repeatedly until TRIP 2 appears on the display.
• Press the MODE button for 5 seconds.

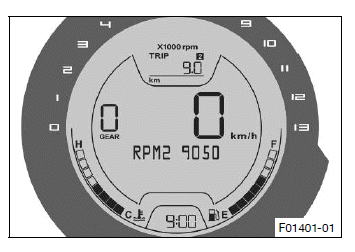

The RPM2 display appears.

Info

The RPM2 display appears in the TRIP 2 display for each menu by keeping the MODE button pressed.

RPM2 is the engine speed above which the shift warning light lights up.

The engine speed can be set at intervals of 50.

The shift speed RPM2 can only be set from a minimum of 50 revolutions per minute above the shift speed RPM1.

• Set the speed with the MODE button and SET button.

Info

The MODE button increases the value.

The SET button decreases the value.

• Press the MODE button and SET button simultaneously.

  The RPM2 display disappears and the set shift speed

The RPM2 display disappears and the set shift speed RPM2 is adopted and saved.
