Combination instrument

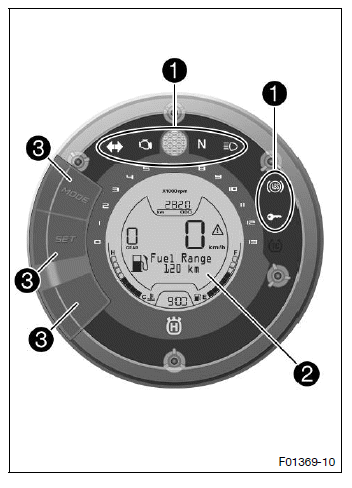

The combination instrument is attached in front of the handlebar.
- Indicator lamps
- Display
- Function buttons
Activation and test
Activation
The combination instrument is activated when the ignition is switched on.
Info
The brightness of the displays is controlled by a brightness sensor in the combination instrument.
Test

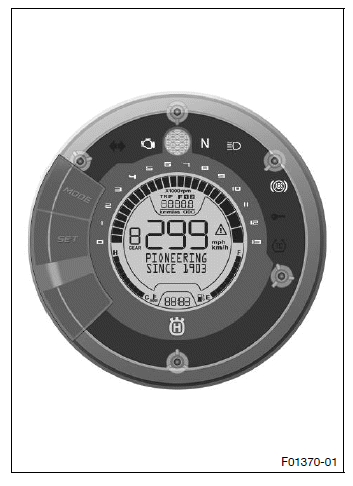

When the ignition is switched on, all indicator lamps light up briefly except for the turn signal indicator lamp and immobilizer indicator lamp.
The segments of the tachometer and the gear display light up and switch off in sequence.
The speedometer counts from 0 to 299 and back.
The remaining display segments of the display light up briefly.
The PIONEERING SINCE 1903 logo appears on the display.
The display then changes to the last selected mode.
Info
The malfunction indicator lamp always lights up as long as the engine is not running. If the engine is running and the malfunction indicator lamp lights up, stop (taking care not to endanger yourself or other road users in the process) and contact an authorized Husqvarna Motorcycles workshop.
The ABS warning lamp lights up so long as a speed of approx. 6 km/h (approx. 4 mph) or more has been reached.
