Husqvarna 401 Vitpilen - Owner's Manual > Shift warning light

The shift warning light 1 is located in the center above the display.

Info

The shift warning light can be configured in the Trip 1 display and Trip 2 display by keeping the MODE button pressed.

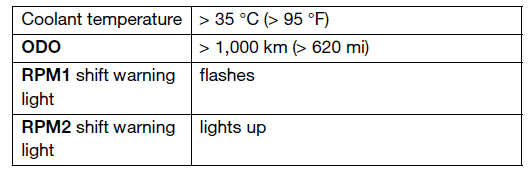

The shift warning light is always active during the running-in phase (up to 1,000 km / 621 miles). The shift warning light can only be deactivated, and the values for RPM1 and RPM2 can only be adjusted after this. The shift warning light flashes red at RPM1 and the shift warning light lights up red at RPM2.

Info

In sixth-gear, the shift warning light is deactivated when the engine is warm after the first service.

Display

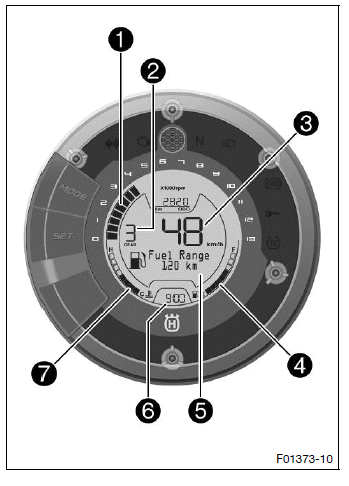

The tachometer 1 shows the engine speed in revolutions per minute.

The gear display 2 shows the engaged gear.

Speed 3 is shown in kilometers per hour km/h or in miles per hour mph.

The fuel level display is displayed in the 4 area.

The display 5 shows additional information.

The time appears in area 6.

The coolant temperature display appears in area 7.

Info

The time must be reset if the battery was disconnected from the vehicle or the fuse was removed.

The brightness of the displays is controlled by a brightness sensor in the combination instrument.

Fuel level display

The fuel tank contents are shown in area 1 of the display.

The fuel level indicator consists of bars. The more bars are lit, the more fuel is in the fuel tank.

Info

If the fuel level is getting low, the warning note Low Fuel Level will also appear on the display.

The fuel level is displayed with a slight delay to prevent the indicator from constantly moving while riding.

The fuel level display is not updated while the side stand is folded out or the emergency off switch is switched off.

Once the side stand is folded up and emergency OFF switch is switched on, the fuel level display is next updated after 2 minutes.

The fuel level display flashes if the combination instrument does not receive a signal from the fuel level sensor.
