Husqvarna 401 Vitpilen - Owner's Manual > Warning notes

Info

All existing warning notes are displayed on the Info display until these are no longer active.

As soon as an error occurs, the relevant indicator lamps light up to signal that an indication/warning note for the operating safety has been detected.

As soon as several warnings have been detected, the general warning symbol flashes additionally on the display.

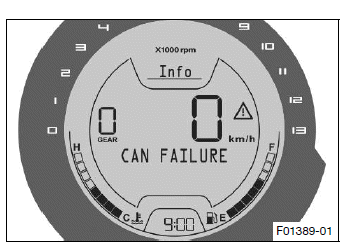

If an error has occurred in the CAN bus, various warning notes appear on the display:

CAN FAILURE, CAN ABS FAILURE, CAN EMS FAILURE and CAN HLU FAILURE can occur.

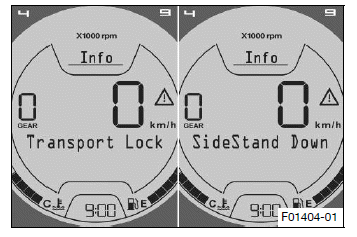

Transport Lock appears on the display if transport mode is activated.

SideStand Down appears on the display if the side stand is folded down.

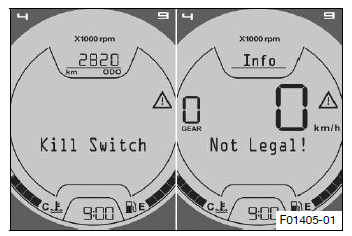

Kill Switch appears on the display if the emergency off switch is pressed.

Not Legal! appears on the display if the approval for road use is invalidated by modifications.

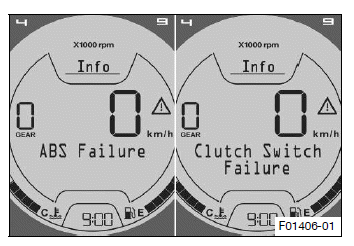

ABS Failure appears on the display if the ABS is no longer active.

Clutch Switch Failure appears on the display if the clutch switch is faulty.

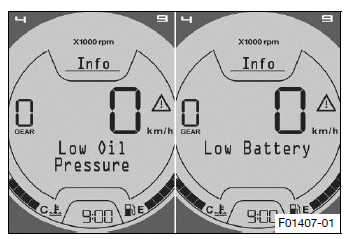

Low Oil Pressure appears on the display if the oil pressure is too low.

Low Battery appears on the display if the battery voltage falls below the specified value.

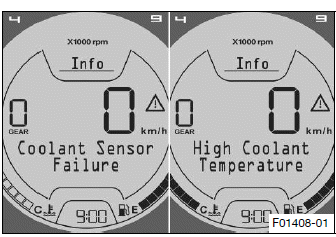

Coolant Sensor Failure appears on the display if the coolant temperature sensor is faulty.

High Coolant Temperature appears on the display if the coolant temperature rises above the specified value.

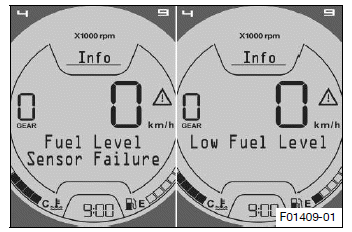

Fuel Level Sensor Failure appears on the display if the fuel level indicator is faulty.

Low Fuel Level appears on the display if the fuel level reaches the reserve mark.

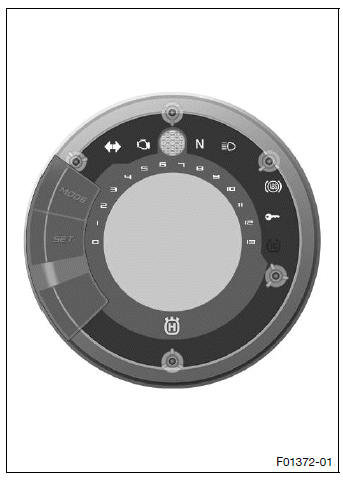

Indicator lamps

The indicator lamps offer additional information about the operating state of the motorcycle.

When the ignition is switched on, all indicator lamps light up briefly except for the turn signal indicator lamp and immobilizer indicator lamp.

As soon as several warnings have been detected, the general warning symbol flashes additionally on the display.

Info

The malfunction indicator lamp always lights up as long as the engine is not running. If the engine is running and the malfunction indicator lamp lights up, stop (taking care not to endanger yourself or other road users in the process) and contact an authorized Husqvarna Motorcycles workshop.

The ABS warning lamp lights up so long as a speed of approx. 6 km/h (approx. 4 mph) or more has been reached.

Possible states

The turn signal indicator lamp flashes green simultaneously with the turn signal - The turn signal is switched on.

Malfunction indicator lamp lights up yellow - The OBD has detected an error in the vehicle electronics.

Come safely to a halt, and contact an authorized Husqvarna Motorcycles workshop.

The shift warning lights up/flashes red - The shift warning light flashes red when the set shift speed RPM1 is reached. The shift warning light lights up red when the set shift speed RPM2 is reached.

  The idle indicator lamp lights up green - The transmission is in idle.

The high beam indicator lamp lights up blue - The high beam is switched on.

ABS warning lamp lights up yellow - Status or error messages relating to ABS.

The immobilizer indicator lamp lights up red - Status or error message for immobilizer.
