Husqvarna 401 Vitpilen - Owner's Manual > ODO display

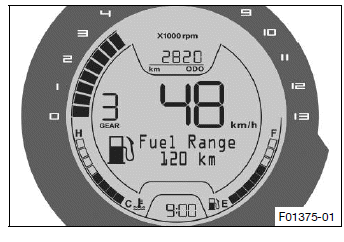

Press the MODE button briefly and repeatedly until ODO appears on the display.

Info

ODO shows the total distance covered.

This value is retained, even if the battery is disconnected from the vehicle or the fuse blows.

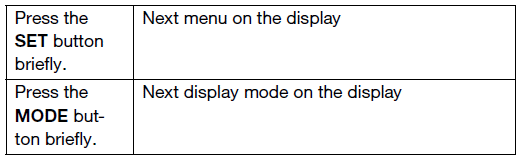

Press the SET button briefly to change to the next menu in the display.

Press the MODE button briefly to change to the next display mode in the display.

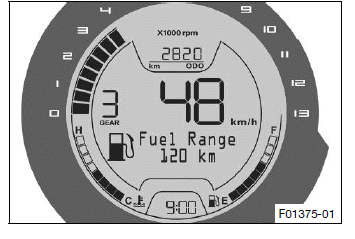

Fuel Range

• Press the MODE button briefly and repeatedly until ODO appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

The Fuel Range menu is identical on the ODO display, the Trip 1 display and the Trip 2 display.

The range is shown in this menu.

Info

The range depends on the average fuel consumption and the fuel quantity in the fuel tank.

The range is displayed after several 100 meters of travel after the ignition is switched on.

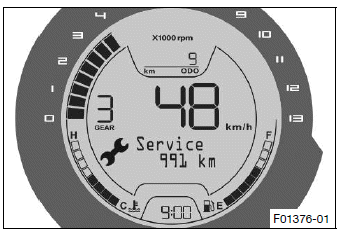

Service

• Press the MODE button briefly and repeatedly until ODO appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

This menu shows the distance to the next service.

TRIP 1 display

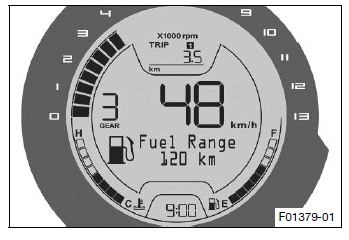

Press the MODE button briefly and repeatedly until TRIP 1 appears on the display.

Info

TRIP 1 shows the distance since the last reset, such as between two refueling stops. TRIP 1 is always running and counts up to 9999.9.

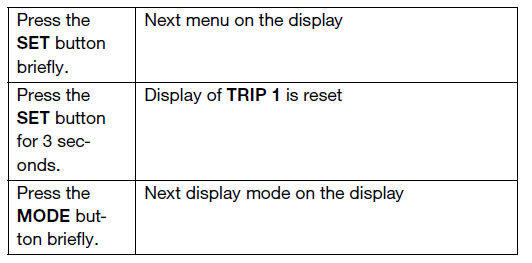

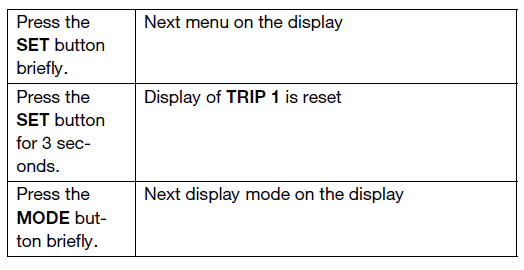

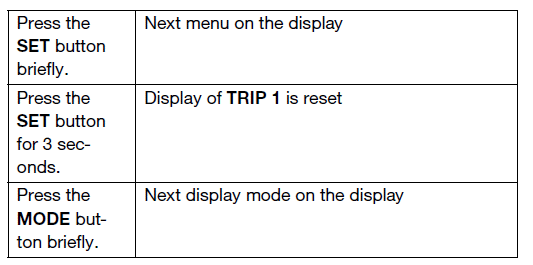

Press the SET button briefly to change to the next menu in the display.

Press the MODE button briefly to change to the next display mode in the display.

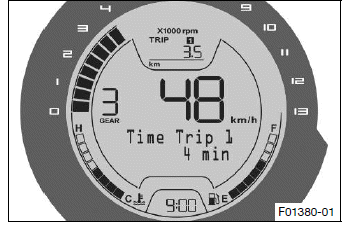

Time Trip 1

• Press the MODE button briefly and repeatedly until TRIP 1 appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

Riding time 1 based on TRIP 1 is shown in this menu.

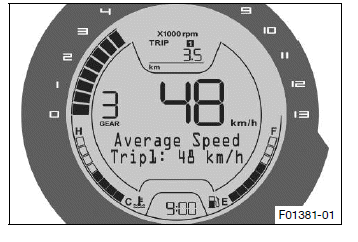

Average Speed Trip1

• Press the MODE button briefly and repeatedly until TRIP 1 appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

Average speed 1 based on TRIP 1 is shown in this menu.

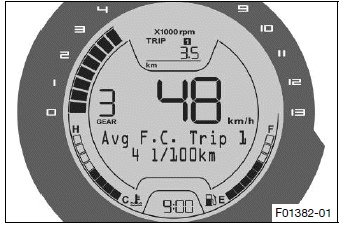

Avg F.C. Trip 1

• Press the MODE button briefly and repeatedly until TRIP 1 appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

Average fuel consumption 1 based on TRIP 1 is shown in this menu.

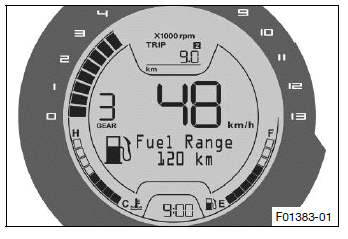

TRIP 2 display

Press the MODE button briefly and repeatedly until TRIP 2 appears on the display.

Info

TRIP 2 shows the distance since the last reset, such as between two refueling stops. TRIP 2 is always running and counts up to 9999.9.

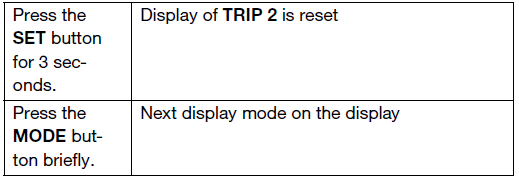

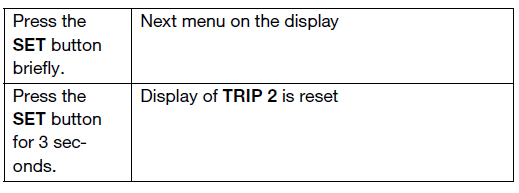

Press the SET button briefly to change to the next menu.

Press the MODE button briefly to change to the next display mode in the display.

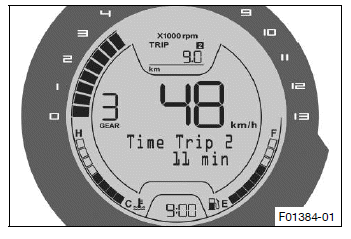

Time Trip 2

• Press the MODE button briefly and repeatedly until TRIP 2 appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

Riding time 2 based on TRIP 2 is shown in this menu.

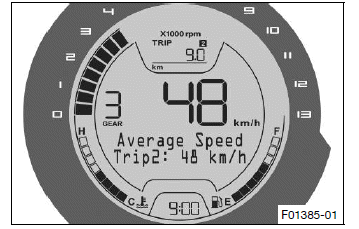

Average Speed Trip2

• Press the MODE button briefly and repeatedly until TRIP 2 appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

Average speed 2 based on TRIP 2 is shown in this menu.

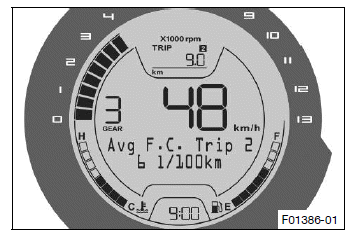

Avg F.C. Trip 2

• Press the MODE button briefly and repeatedly until TRIP 2 appears on the display.
• Press the SET button briefly and repeatedly until the desired menu appears.

Average fuel consumption 2 based on TRIP 2 is shown in this menu.
