Mash Dirt Track 650 - Owner's Manual > Cleaning the Motorcycle
To keep the body and paint in good condition, wash your motorcycle often.
The best way to clean your motorcycle is to use warm water combined with detergent to remove the dirt.
Attention: Do not use high-pressure water to wash the motorcycle. Do not point water spray directly at electrical parts, plugs, cables, bearings, ECU, etc. High pressure water sources will cause water to enter into secure parts leading to functional failure and premature aging.
- Use ordinary detergent brands to clean your motorcycle. For the most difficult areas use a brush to clean.
- Plug the muffler before cleaning, to prevent water from getting inside the muffler.
- After washing, dry off the motorcycle. Ride for a distance until the engine has reached a working temperature; meanwhile apply the brake to evaporate the water left inside.
- Since the motorcycle cools down, please grease all the sliding parts, bearings and oil plug with lubricating oil.
- Protect your electric system to avoid any foreign materials entering.
When washing the motorcycle, please remove the air cleaner cover and filter and use foam or cotton to protect the intake channel.
When washing, block the muffler to avoid water getting into the muffler and engine.
Maintenance Prior to Storage
If the motorcycle will be stored for a long period of time, pay attention to the prevention of moisture, sunshine and rain in order to protect it from unnecessary damage. Special check- ups should be carried out on those important parts and sub- assemblies before storage.
- Change the oil
- Grease the chain.
- Remove the battery and place in a cool and well- ventilated area. The battery should be charged at least once a month to prevent it from becoming discharged and malfunction.
- Clean the motorcycle and apply anti-corrosion to parts vulnerable to rust.
- Drain the fuel if possible, use fuel stabilizer if draining fuel tank is not possible.
- Remove the ignition key.
- Cover the motorcycle.
Return to Service
- Remove the cover and clean the motorcycle. Change the oil if the vehicle has not been used for over 4 months.
- Charge the battery and re-install.
- Fill the tank with fresh fuel.
- Prior to driving, test the motorcycle at a low speed and in a safe place.

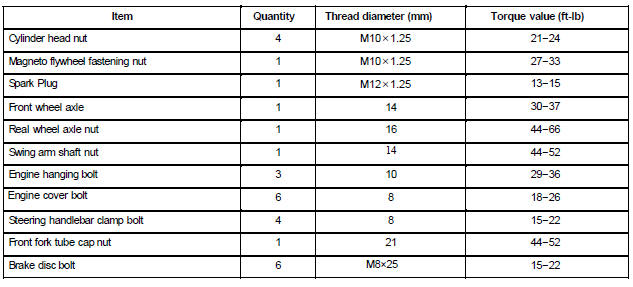

Special Torque Values

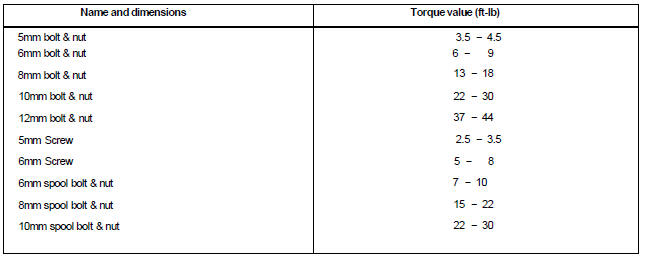

Standard Torque Values
