Inspection and adjustment

This section introduces the technical requirements for proper inspection, maintenance and adjustment of various parts of the G400C motorcycle.

Unless stated or indicated in the maintenance period table, you should check and adjust all parts of the G400C motorcycle prior to use.

Periodic maintenance is a combination of verification and service operations performed through the Genuine Motorcycles dealer network. To properly maintain your motorcycle, it is normal during these operations that some parts may be replaced; components are inspected for adjustment variations from their original settings as a result of normal wear and tear of the parts and usage of the motorcycle. These interventions do not constitute flaws in the motorcycle; on the contrary, their purpose is to prevent any problems for your motorcycle to continue operating properly.

It is mandatory to replace parts and lubricants according to the maintenance table.

To maintain your warranty, you are required to have your vehicle inspected by a Genuine dealer after the initial 800Km of use. Your dealer will inspect your vehicle and perform any maintenance and adjustments that may be necessary after the initial break-in period.

Maintenance Schedule

Maintenance Schedule

For optimum performance, the motorcycle should be checked and maintained at periodic intervals. The meanings of capitalized letters in the table below are as follows:

I: Inspection inspect, then clean, lubricate, adjust, refill, repair or replace if necessary.

A: Inspect, then adjust if necessary

C: Clean

R: Mandatory Replacement

L: Lubricate

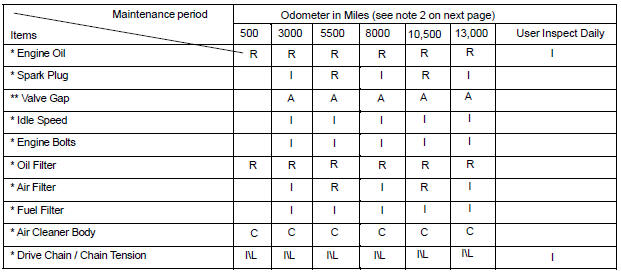

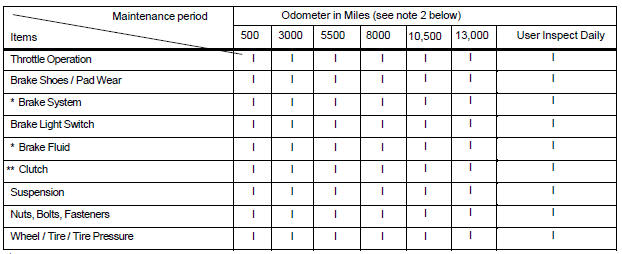

Maintenance Schedule

* Inspection by user is expected. Maintenance is suggested to be performed by authorized genuine dealer.

** Inspection by user is expected. Maintenance is required to be performed by authorized Genuine Service personnel.

  1. While operating the vehicle in a dusty area, the service interval will need to be more frequent.
  2.  When the odometer reads more than the given maximum value, repeat the maintenance period as per the mile interval stipulated in the table.
  3. To ensure safety, the adjustment of these items should only be carried out by an authorized genuine dealer.
