SERVICE INFORMATION

GENERAL

• Place the motorcycle on level surface before starting any work.
• Gasoline is extremely flammable and is explosive under certain conditions.
• Work in a well ventilated area. Smoking or allowing flames or sparks in the work area or where the gasoline is stored can cause a fire or explosion.
• The exhaust contains poisonous carbon monoxide gas that may cause loss of consciousness and may lead to death.

  Run the engine in an open area or with an exhaust evacuation system in an enclosed area.

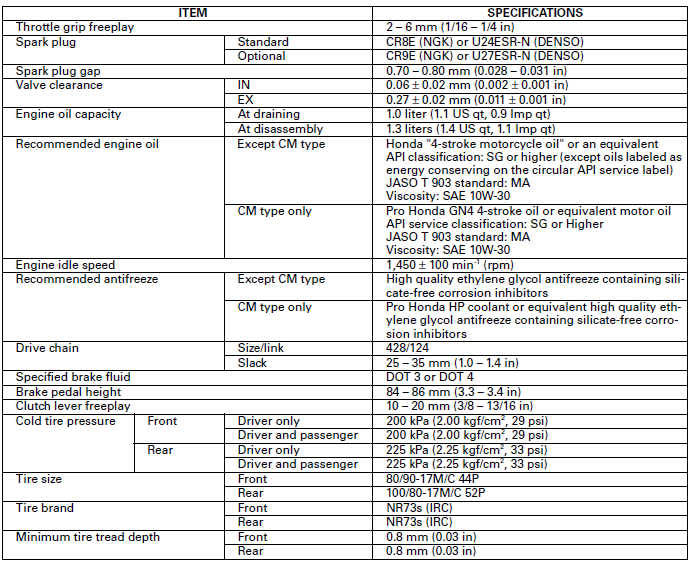

SPECIFICATIONS

TORQUE VALUES

Air cleaner cover screw 1.2 N-m (0.1 kgf-m, 0.9 lbf-ft)
Spark plug 16 N-m (1.6 kgf-m, 12 lbf-ft)
Tappet adjusting nut 10 N-m (1.0 kgf-m, 7 lbf-ft) Apply engine oil to the threads and seating surface.
Timing hole cap 6.0 N-m (0.6 kgf-m, 4.4 lbf-ft)
Crankshaft hole cap 8.0 N-m (0.8 kgf-m, 5.9 lbf-ft)
Oil drain bolt 25 N-m (2.5 kgf-m, 18 lbf-ft) Apply engine oil to the threads and seating surface.
Water hose band screw -
Rear axle nut 59 N-m (6.0 kgf-m, 44 lbf-ft) U-nut
Drive sprocket fixing plate bolt 10 N-m (1.0 kgf-m, 7 lbf-ft)
Driven sprocket nut 64 N-m (6.5 kgf-m, 47 lbf-ft) U-nut
Front master cylinder reservoir cover screw 1.5 N-m (0.2 kgf-m, 1.1 lbf-ft)
Rear reservoir cover screw 1.5 N-m (0.2 kgf-m, 1.1 lbf-ft)
Sidestand pivot bolt 18 N-m (1.8 kgf-m, 13 lbf-ft)
Sidestand pivot nut 44 N-m (4.5 kgf-m, 32 lbf-ft) U-nut

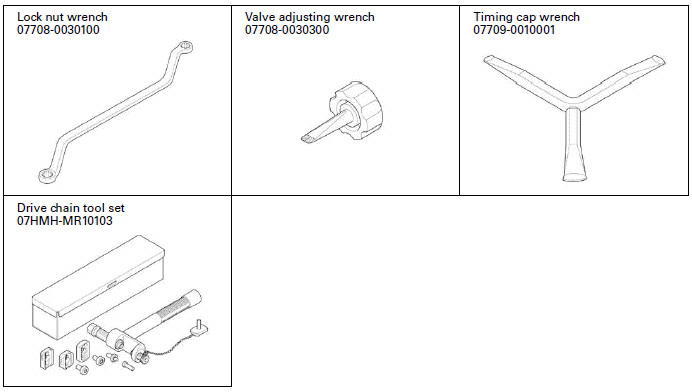

TOOLS

MAINTENANCE SCHEDULES

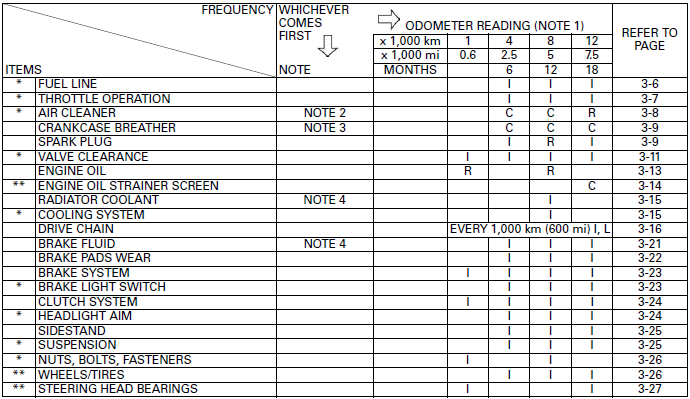

Except CM type

Perform the Pre-ride inspection in the Owner's Manual at each scheduled maintenance period.

I: Inspect and Clean, Adjust, Lubricate or Replace if necessary.
C: Clean.
R: Replace.
A: Adjust.
L: Lubricate.

The following items require some mechanical knowledge. Certain items (particularly those marked * and **) may require more technical information and tools. Consult an authorized Honda dealer.

* Should be serviced by an authorized Honda dealer, unless the owner has proper tools and service data and is mechanically qualified.
** In the interest of safety, we recommend these items be serviced only by an authorized Honda dealer.

Honda recommends that an authorized Honda dealer should road test your motorcycle after each periodic maintenance is carried out.

NOTES:

1. At higher odometer readings, repeat at the frequency interval established here.

2. Service more frequently when riding in unusually wet or dusty areas.

3. Service more frequently when riding in rain or at full throttle.

4. Replace every 2 years. Replacement requires mechanical skill.

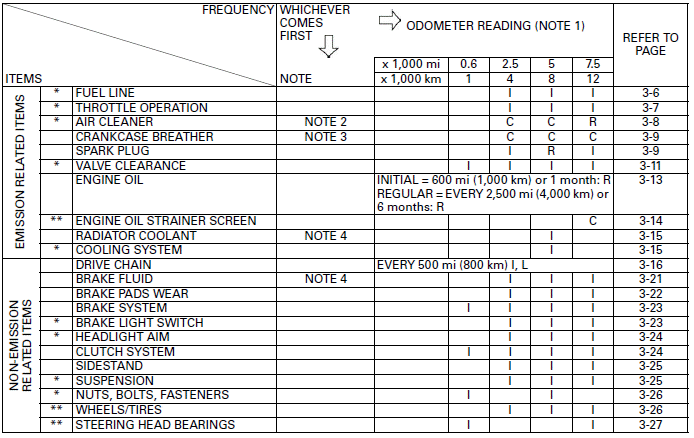

CM type only

Perform the Pre-ride inspection in the Owner's Manual at each scheduled maintenance period.

I: Inspect and Clean, Adjust, Lubricate or Replace if necessary.
C: Clean.
R: Replace.
A: Adjust.
L: Lubricate.

The following items require some mechanical knowledge. Certain items (particularly those marked * and **) may require more technical information and tools. Consult an authorized Honda dealer.

* Should be serviced by an authorized Honda dealer, unless the owner has proper tools and service data and is mechanically qualified.
** In the interest of safety, we recommend these items be serviced only by an authorized Honda dealer.

NOTES:

1. At higher odometer readings, repeat at the frequency interval established here.

2. Service more frequently when riding in unusually wet or dusty areas.

3. Service more frequently when riding in rain or at full throttle.

4. Replace every 2 years. Replacement requires mechanical skill.

• Fuel Line
• Spark Plug
• Engine Oil
• Drive Chain
• Brake Fluid
